- super slim housing design, perfect for limited
space installation locations - contains a LM80 rated
SMD LED module that offer high light
color uniformity, 12 watts up to 950 - Available in 3000K, 4000K, 5000K color temperature.
- This slim panel light is dimmable
from 100% down to 5% smoothly - Includes two spring loaded clips
to attached to any ceiling material. - Three “Quick connect” push-in
terminals for fast and easy wiring. - Suitable for dry/damp locations. •Approved for direct contact with
insulation. (Type IC)

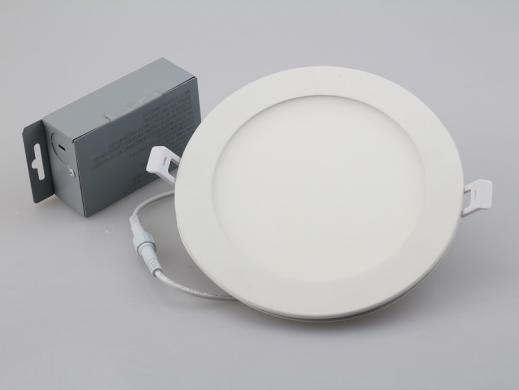

ML Series 6in Downlight
Description
| Model No. | ML-SMP-12W-120V |
| Input Wattage | 12W |
| Voltage | AC120V, 60Hz |
| Delivered Lumens (lm) | 950±5%lm |
| Efficacy (lm/W) | 80~90lm/w |
| Beam Angle | 120° |
| Power Factor | >0.95 |
| Color Temperature | 3000K-4000K-5000K |
| CRI | |
| Equivalent Wattage | 95W |
| IP Rating | |
| Material | Aluminum |
| BaseType | N/A |
| Dimming Compatible | Yes, 100%-5% |
| Operating Temperature | -20°C~40°C (-4°F~104°F) |
| Life Spam | 50,000 |
| Certificates | ETL,cETL |
| Warranty | 3 |
| Product Dimensions | 6in Cutout |
- File Format
- File Name
- File Size
- Action
- ML-SMP-12W-120V 12W (2) (1)
- 372.81 KB
- Download
