UFO C Series

Key Features:

■ Emergency Backup Battery Available
Emergency time: 1.5 hours/3 hours

■ Power Adjustable
200W: Power can be adjusted to200W, 150W, 100W
150W: Power can be adjusted to150W, 100W, 80W
■ CCT Tunable
3000K/4000K/5000K Or 4000K/5000K/6000K
■ Smart Control
Motion sensor function available

■ Energy Saving Up To 80-85%
Can reduce electricity costs by 80%

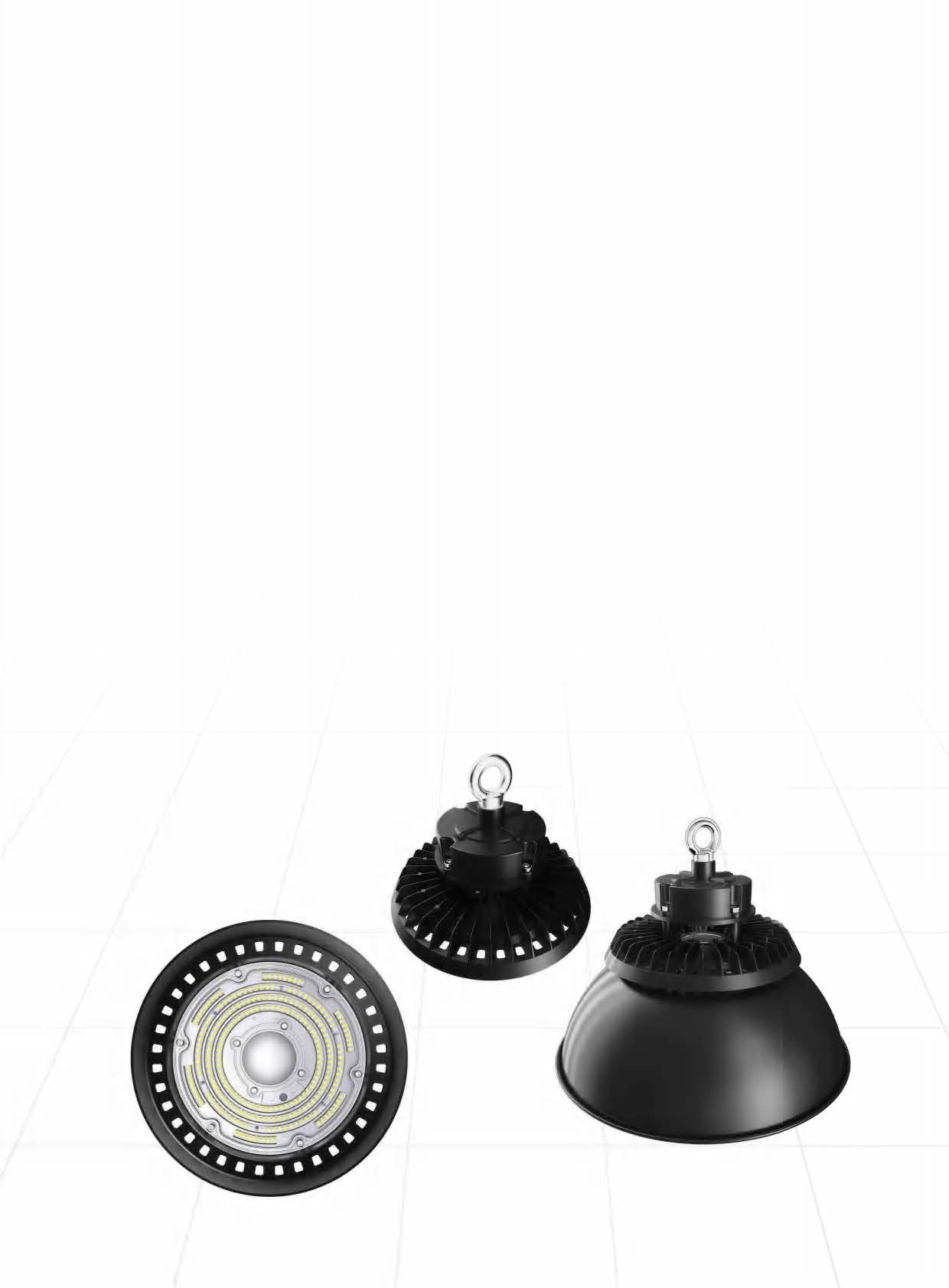

■ Equipped With Reflector
Improve lighting by up to 20% and reduce light loss
■ High Lumen Efficiency

Application Areas:

■ Outdoor large sports arena
■ warehouse
■ Exhibition hall
■ garage
■ Outdoor football field
■ Shipyard
■ Sports center
■ Stadium
■ Logistics center
■ factory

Compare

Description

Model No.	U-xxWC1 YZTXX / U-xxWC2 YZTXX / U-xxWC3 YZTXX / U-xxWC4 YZTXX
Light Type	UFO High Bay LED
Input Wattage	100W/150W/200W/240W/300W
Voltage	AC100-277V/120-347V
Delivered Lumens (lm)
Efficacy (lm/W)	130lm/W or 170lm/W
Beam Angle	60/90/120
Power Factor	.95
Color Temperature	3000K/4000K/5000K Or 4000K/5000K/6000K
CRI	70/80
Equivalent Wattage
IP Rating	IP65
LED Driver	VENAS Brand
LED Chips	2835
Material	Die-cast aluminum
BaseType
Dimming Compatible	Yes 1-10v
Operating Temperature	-40C(-40F) – +50C(122F)
Life Spam	50,000 Hours
Certificates	UL, DLC, ROHS, ErP
Warranty	5 Years
Product Dimensions	Ø253x149mm(Ø10.0×5.9inch) / Ø308x155mm(Ø12.1×6.1inch) Ø353x160mm(Ø13.9×6.3inch) / Ø404x168mm(Ø16.0×6.6inch)
