4in, 6in, 8in, 9.5in
FEATURES
- Energy efficient: save up to 80% in energy costs
High lumen output
Mercury-free
Instant-on light
50,000 hours at 70% lumen maintenance rated life
CCT:3000K/3500K/4000K - The 1-10V Dimming type is continuous

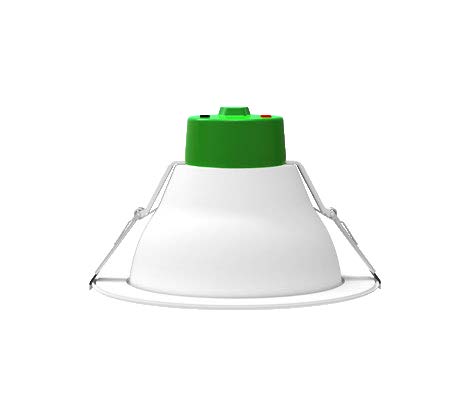

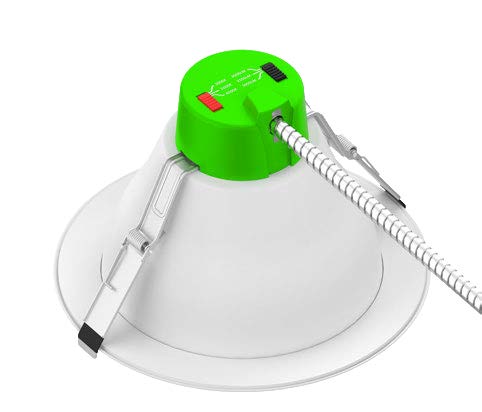

LED Selectable Commercial Downlight
Description
| Model No. | WSD-4CDL5812W27-33540K |
| Input Wattage | 5.5W – 32W |
| Voltage | AC120V, 60Hz |
| Delivered Lumens (lm) | 480lm-3200lm |
| Efficacy (lm/W) | 90-100 lm/w |
| Beam Angle | 90° |
| Power Factor | >0.9 |
| Color Temperature | 3000K-3500K-4000K |
| CRI | .9 |
| Equivalent Wattage | 95W |
| IP Rating | |
| Material | Aluminum |
| BaseType | N/A |
| Dimming Compatible | Yes, 100%-5% |
| Operating Temperature | -20°C~40°C (-4°F~104°F) |
| Life Spam | 50,000 |
| Certificates | UL,Energy Star, ja8 |
| Warranty | 5 Years |
| Product Dimensions | 4in-9.5in |
- File Format
- File Name
- File Size
- Action
- EcoMax Selectable LED Commercial Downlight spec sheet
- 3.74 MB
- Download
