• Lumileds LED, high luminous efficiency and long
working life.
• High efficiency LED Driver, the wide range input
voltage AC120-277V.
• Die Cast aluminium cooling design,high quality
and better cooling for LED Tj < 85°C.
• Excellent Optics design, greatly improve the light
utilization and evenness.
• The 1-10V Dimming type is continuous.
• Motion sensor Control Available (SOLD SEPARATELY).

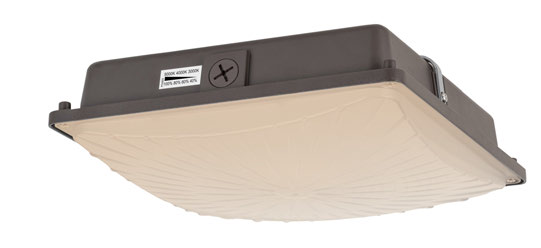

EcoMax Slim Canopy Light
Description
| Model No. | WSD-CP26395265W27-45K |
| Input Wattage | 26W,39W,52W,65W |
| Voltage | AC120-277V |
| Delivered Lumens (lm) | 3929 lm (26W&4000K) 5575 lm (39W&4000K) 7132 lm (52W&4000K) 8525 lm (65W&4000K) |
| Efficacy (lm/W) | >140 lm/W |
| Beam Angle | 118 Degrees |
| Power Factor | >0.95 |
| Color Temperature | 4000K,5000K |
| CRI | |
| Equivalent Wattage | 95W |
| IP Rating | |
| Material | |
| BaseType | |
| Dimming Compatible | 1-10V Dimming Continuous |
| Operating Temperature | |
| Life Spam | >50000 hours |
| Certificates | UL, DLC, ROHS |
| Warranty | 5 Year Limited |
| Product Dimensions | 6in Cutout |
- File Format
- File Name
- File Size
- Action
- EcoMax LED Slim Canopy Light Spec Sheet
- 1.91 MB
- Download
