Model: WP28-14-120L-S2A4C3

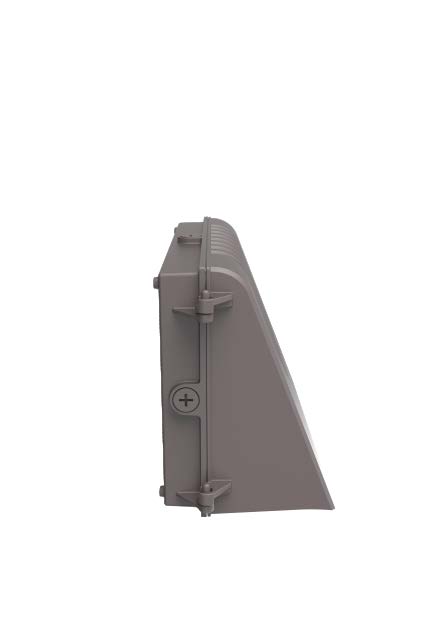

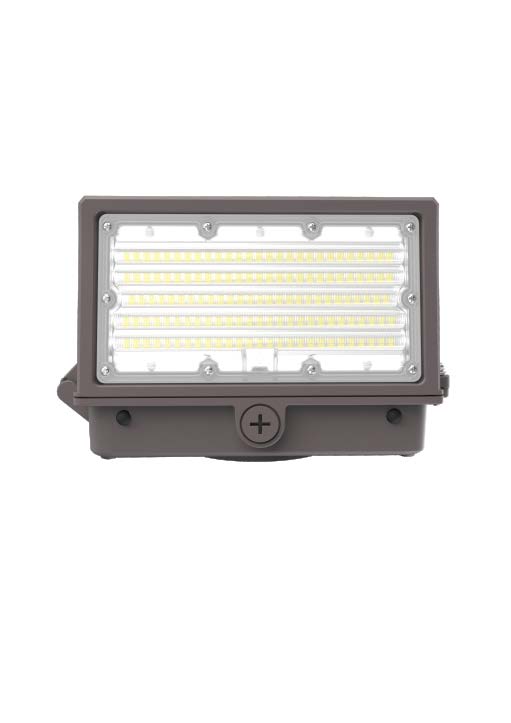

Dark sky compliant wall pack with field-adjustable wattage (60W–120W) and color temp (3000K/4000K/5000K). Delivers up to 20,400 lumens at 170 lm/W. Includes built-in photocell, 0–10V dimming, and durable IP65 housing. Ideal for commercial exteriors, warehouses, and perimeter lighting. UL/cUL listed, DLC certified, 5-year warranty.
| Model No. | WP28-14-120L-S2A4C3 |
| Light Type | LED Wall Pack |
| Input Wattage | 60W, 90W, 100W, 120W – field selectable |
| Voltage | 110-277Vac |
| Delivered Lumens (lm) | 10200lm, 11200lm, 17000lm, 20400lm |
| Efficacy (lm/W) | 170lm/W |
| Power Factor | >0.9 |
| Color Temperature | 3000K/4000K/5000K – field selectable |
| CRI | >80 |
| Equivalent Wattage | |
| IP Rating | Wet locations |
| LED Chips | |
| Finish | Black |
| Dimming Compatible | 0-10V standard |
| Operating Temperature | -30°C~+45°C |
| Life Span | 50,000 hours |
| Certificates | UL, CUL, DLC |
| Warranty | 5 years limited |
| Product Dimensions | 14.48″ W x 9.25″ H x 6.44″ E |
