Features:
Modular design
COB LED chip: 80+ standard, 90+ optional
Dimming: 0-10V(10% standard ,1% optional) or TRIAC
Beam angle: 15°, 24°, 36°, 60° options
Architectural form : 4″, 6″ and 8″

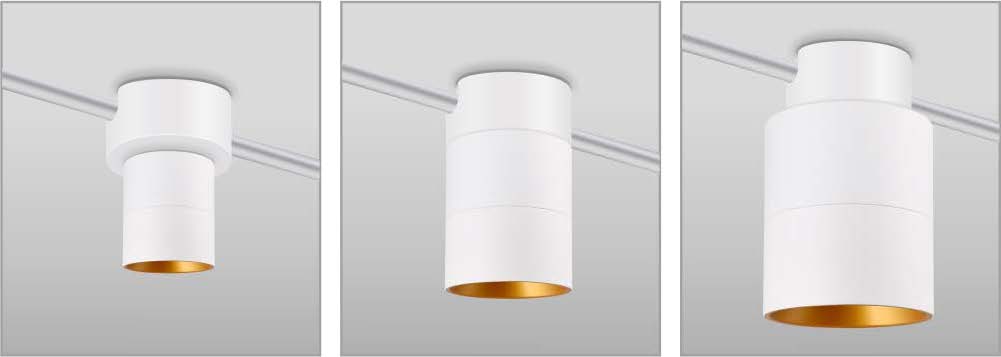

Mounting: Surface or pendant
Wattage Selectable
Cylinder (4″, 6″, 8″)
Description
| Model No. | CY-4/6/8-R-WH/BK/CN-D-80/90-CCT-Beam-Trim-Mount |
| Input Wattage | 15w/20w/25w 20w/30w/40w 36w/48w/60w |
| Voltage | AC120V, 60Hz |
| Delivered Lumens | 1300~2200lm 2100~4200lm 3200~5400lm |
| Efficacy (lm/W) | 90~105lm/w |
| Beam Angle | 15°, 24°, 36°, 60° options |
| Power Factor | >0.9 |
| Color Temperature | 2700K,3000K, 3500K, 4000K |
| CRI | 80 (Available in 90) |
| Equivalent Wattage | |
| IP Rating | |
| Material | Aluminum |
| BaseType | N/A |
| Dimming Compatible | Yes, 100%-1% |
| Operating Temperature | -20°C~40°C (-4°F~104°F) |
| Life Span | 50,000 |
| Certificates | UL |
| Warranty | 5 Year |
| Product Dimensions | 4″, 6″, 8″ |
- File Format
- File Name
- File Size
- Action
- EcoMax Cylinder
- 1.01 MB
- Download
