- LED high luminous efficiency and long working life.
- High efficiency LED Driver, the wide range input voltage
AC120-277V. - Die-cast aluminum cooling design, high quality and better
cooling for LED Tj < 85°C. - Excellent optics design, greatly improve the light utilization
and evenness. - Photocell (Standard), Wireless bluetooth system and Motion
sensor control available (Optional)

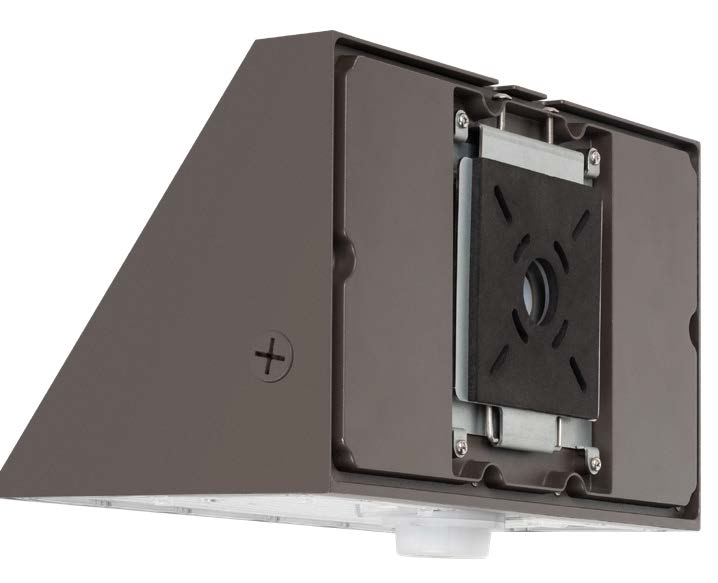

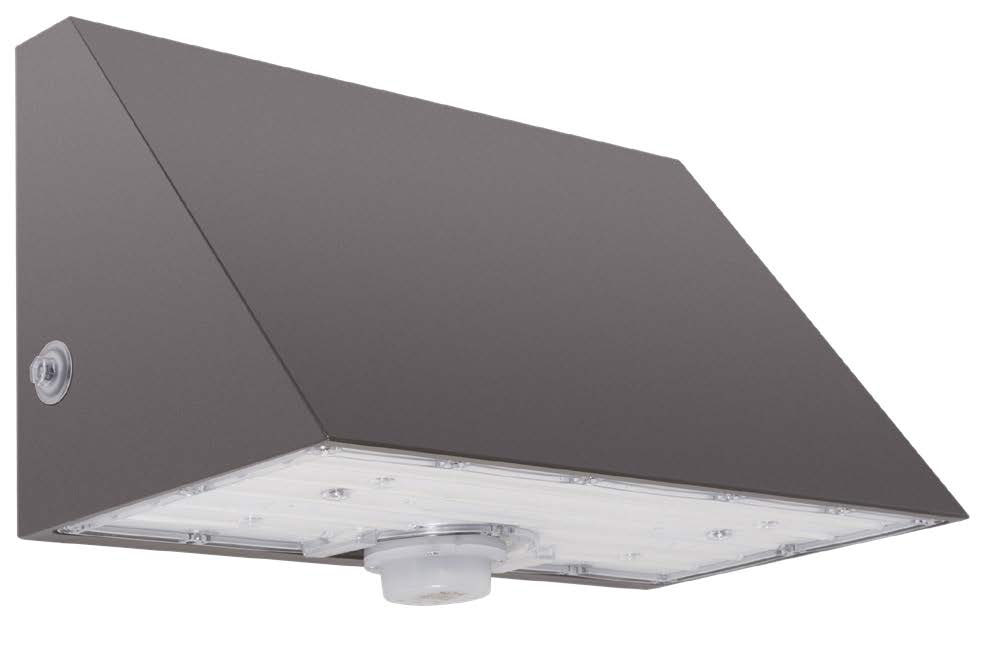

Architectural Wall Pack
Description
| Model No. | WSD-AFW2842567W27-345K-D-T4-P |
| Light Type | LED Wall Pack |
| Input Wattage | (28W/42W/56W/70W) (48W/72W/96W/120W) |
| Voltage | AC120-277V |
| Delivered Lumens (lm) | 5211lm~17148lm |
| Efficacy (lm/W) | 160-170lm/W |
| Power Factor | 0.90 |
| Color Temperature | 3000K, 4000K, 5000K / 4000K/5000K |
| CRI | 70 |
| Equivalent Wattage | |
| IP Rating | IP65 |
| LED Chips | |
| Material | aluminum |
| Operating Temperature | -22 – 113 degrees (F) |
| Life Spam | >50,000 hrs |
| Certificates | UL DLC |
| Warranty | 5 Year |
| Product Dimensions | 12.35″ x 7.09″ |
- File Format
- File Name
- File Size
- Action
- EcoMax WSD-AFW-Series-Selectable
- 2.25 MB
- Download
